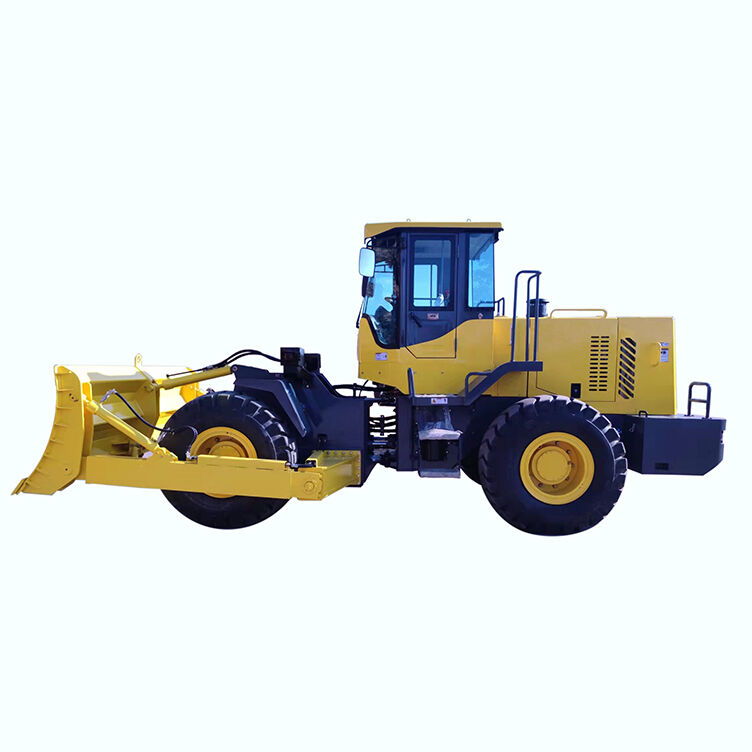

Wheel Bulldozer DL180

Name: Wheel Bulldozer DL180
Brand: Qingdao Hornquip Machinery Co., Ltd
SKU: DL180
Price: 550.00 USD
Availability: InStock

Dettagli del prodotto

altro nome:

apripista gommato bulldozer

MOTORE:

Wechai WP6G175E22

Pneumatico:

20.5-25

Peso operativo:

13500 kg

Potenza nominale:

129kw

Evidenziare:

Wheel Bulldozer DL180 with warranty

Construction Bulldozer heavy-duty

Descrizione del prodotto

performance	Overall Dimension	7150×3250×3390mm
	Wheel base	3400mm
	Wheel track	1850mm
	Height of shovel blade	1000mm
	Operating weight	13500kg
	Max. lift height of dozer blade	850
	Max. depth of dozer blade	235
	Width of shovel blade	3250mm
	Gradeability	30°
engine	Model of engine	WECHAI WP6G175E22 (EURO 2)
	Pattern	Turbo, in-line, water-cooled, 4-stroke, direct injection
	Rated power	129KW
	Rated rotary speed	2200r/min
	Max. torque	640N.m
	Min. fuel consuming rate	96g/kw.h
	Total displacement	6.75L
Transmission system	Model of torque device	HANGZHOU ADVANCE
	Pattern	Planetary
	Number of gears	2 forward,1 reverse
	Max. travel speed	38km/h
	Axle	Yunyu
	Main reducer type	Spiral bevel gear first class reduction
	Final reducer	Single stage planetary
	Tire size	20.5-25
Steering system	Pattern	Articulated, full hydraulic
	Min. turning radius(outside of bucket)	6708mm
	Max. turning angle	38°±1
Working hydraulic system	Working pump	2080-1010
	Displacement	250L/min
	System working pressure	18MPa
	Distribution device model	32
	Pilot valve model	DJS
brake	Brake system	Gas cap oil caliper disc on 4 wheels
brake	Parking brake	Hand operated caliper disc
